IP65 350w Waterproof Moving Head Beam Light

TECHNICAL PARAMETERS

POWER SUPPLY

Input power:100-240V 50/60 Hz

LAMP SOURCE

Discharge lamp with a short arc burner in a reflector system

– Type: MSD R17 350W

– Output Lamp power: 600W

– Color temperature: 8,500 K

– Average life: 2,000 h

OPTICS

3-lens optical group combination

Focus: electronic

Light output at 10 meters: 160000 lux

COLOR SYSTEM

Interchangeable color wheel with 14 colors + open

EFFECTS SECTION

Interchangeable gobo wheel with 17 fixed gobos + open High speed shake effect

16-face rotating prism

Frost filter

Mechanical shutter and adjustable speed strobe effect mechanical dimmer

CONTROL AND PROGRAMMING

16/20 DMX 512 control channels

Display: LCD display

Pan/Tilt Resolution: 16 bit

Movement control: vectorial

DMX signal connection: 3 PIN output

MOVING BODY

Travel: -PAN = 540° – TILT = 210°

ELECTRONICS

Function reset from the lighting desk ON/OFF

lamp control from the lighting desk “AUTOTEST”

function from menu Electronic monitoring with status error

SAFETY DEVICES

Bipolar circuit breaker with thermal protection.

Automatic break in power supply in case of overheating or failed operation of cooling system.

Forced ventilation with axial fans.

WEIGHT
32.5 Kg

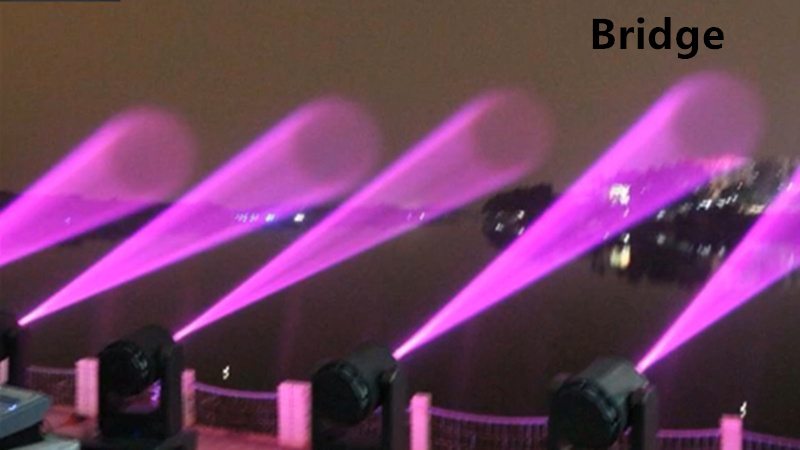

Product Effect:
