Led Kinetic Ring

Parameter:

LEDs of ring:54pcs RGBW*10W

Size of ring Diameter:120CM/ Internal diameter100CM

Ring weight:17KG

Winch quantity:3pcs

Max loading weight:10KG

Lifting height:900M

Fast speed:35CM/S

Control mode:DMX-512

Channel:4CH/8CH/12CH/4CH+N

Connectors:3 pin XLR connector in and out

Screen:4 Digital tube display

Load cable diameter:7MM

Synchronization error:Less 6MM

Voltage:AC90V-240V/50-60HZ

Total power:350W*3 pcs

IP rating:IP20

Environment temperature:- 10℃~50℃

Safety security:Physical braking, electronic protection

Installation:Vertical lifting

Winch size:302MM*231MM*497MM(Including hook size）

Winch weight:13KG*3/15KG*1

Package:Carton/Flight case

DMX Signal Cable:2*0.5M㎡*1.5M*3pcs

Power Cable:3*1.25M㎡*1.5M*3pcs

Safety Cable:3MM*430MM*6pcs

Aluminum hook:30MM*110MM*82MM*6pcs

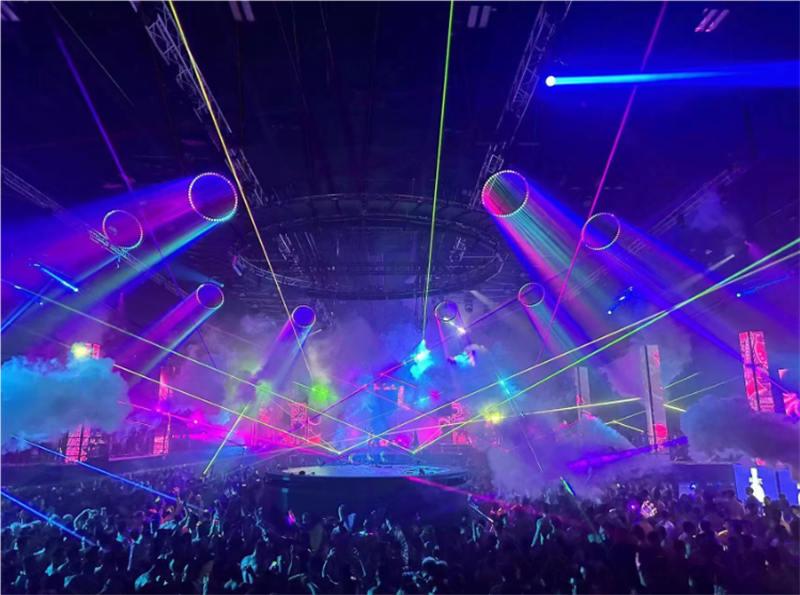

Product Effect:
