NEW Water Curtain

Parameter:

Modular CNC Water Curtain System:X3

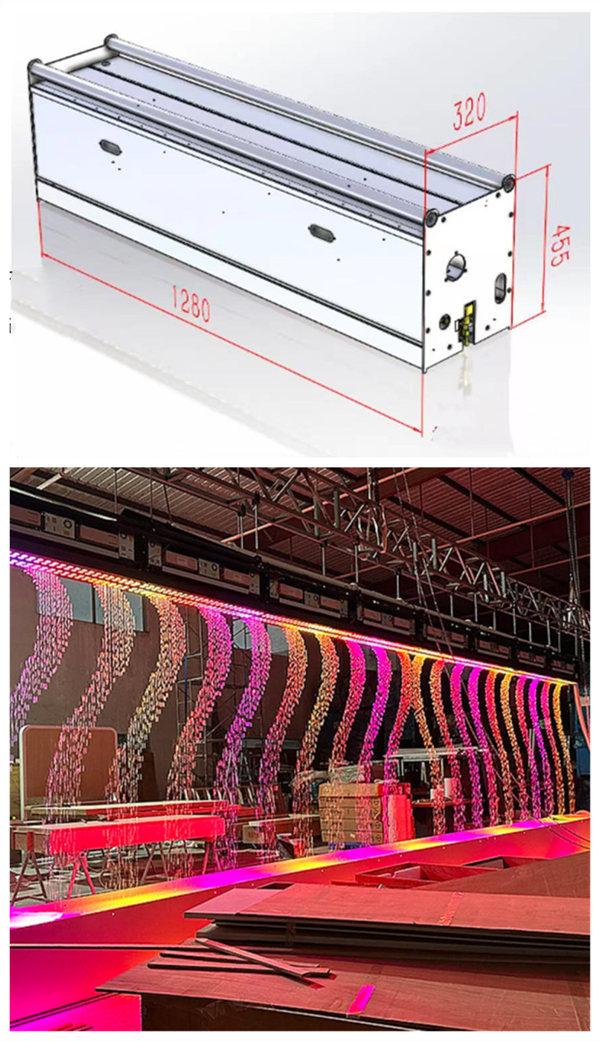

Size: L1280*D320*H455mm

Power: 1.25KW/group

Weight: 80KG

System: AOS control system, cross-level interconnection.

Main control: independent main control server + M1 processor + ST sub-machine driver.

Lighting: Four sections of 96 full-color 512 LED lighting components, large lens Taiwan Epistar chip.

Structure: Segmented built-in two-stage filter + slider type quick-installation hanging structure + plug-in door panel.

Material: slider type hoisting structure + stainless steel + powder spraying paint, beautiful design.

Valve body: high-precision high-frequency digital water curtain solenoid valve, 100 nozzles/m.

Power supply: Taiwan MEAN WELL 24V low-voltage switching power supply + a full set of CHINT control box.

Filtration: Segmented two-stage precision depth filtration system

Equipment splicing: powercon docking, seamless docking of water outlet, convenient transportation and installation.

Product advantages: independent control system, address code connection, cross-level interconnection, U disk reading, high lighting brightness, better permeability, and clearer text with high pixels.

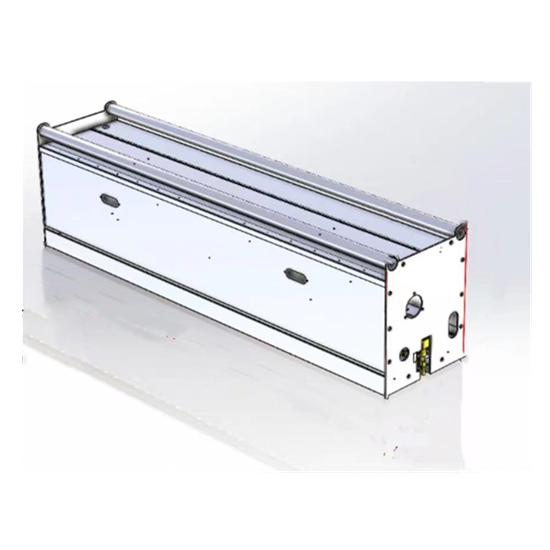

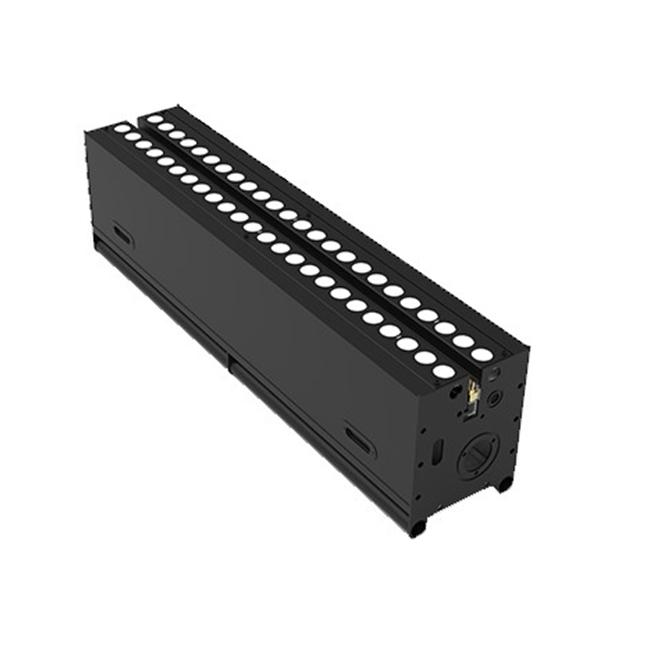

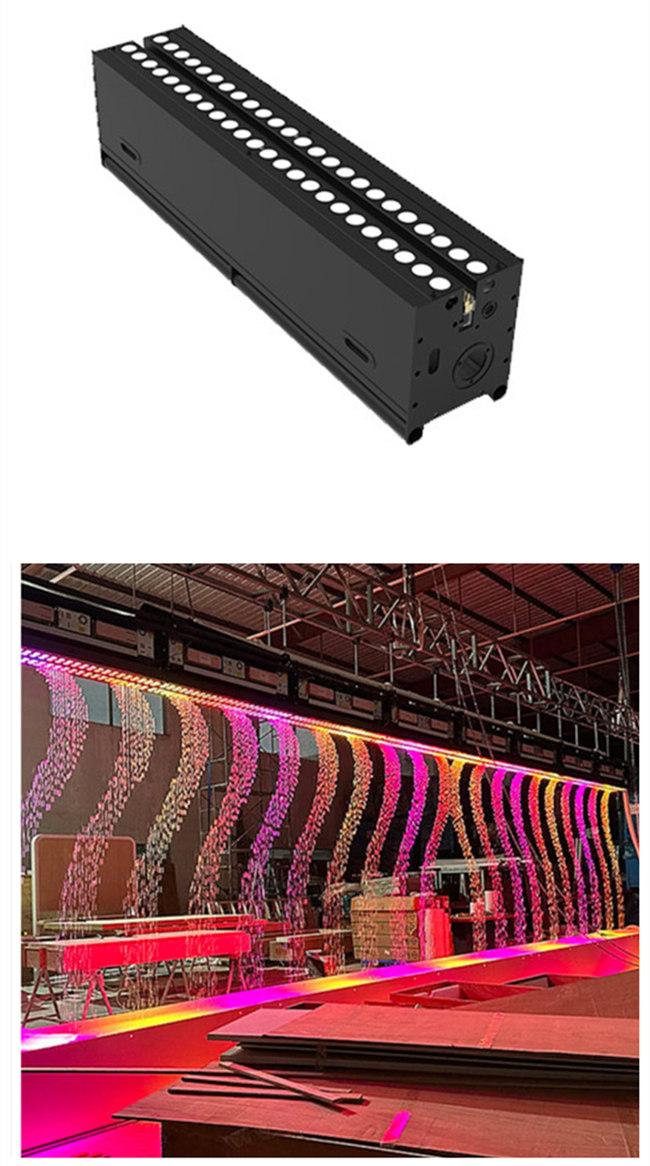

Modular CNC Water Curtain System:X5

Size: L1600*D350*H455mm

Power: 1.25KW/group

Weight: 100KG

System: AOS control system, cross-level interconnection.

Main control: independent main control server + M1 processor + ST sub-machine driver.

Lighting: 120 pieces of full-color 512 LED lighting components in four sections, large lens Taiwan Epistar chip.

Structure: Segmented built-in two-stage filter + slider type quick-installation hanging structure + plug-in door panel

Material: slider type hoisting structure + stainless steel + powder spraying paint, beautiful design.

Valve body: high-precision high-frequency digital water curtain solenoid valve, 80 nozzles/m.

Power supply: Taiwan MEAN WELL 24V low-voltage switching power supply + a full set of CHINT control box.

Filtration: Segmented two-stage precision depth filtration system

Equipment splicing: powercon docking, seamless docking of water outlet, convenient transportation and installation.

Product advantages: independent control system, address code connection, cross-level interconnection, U disk reading, high lighting brightness, better permeability, and clearer text with high pixels.

Size:customizable

Shape:customizable,straight, round, curved etc.

Application:widely used in large events, exhibitions, hotel lobbies, hotels, KTV, bars, spas, aquariums, supermarkets, commercial complexes, villas, office buildings, living rooms, offices, banquet halls and other high-end places

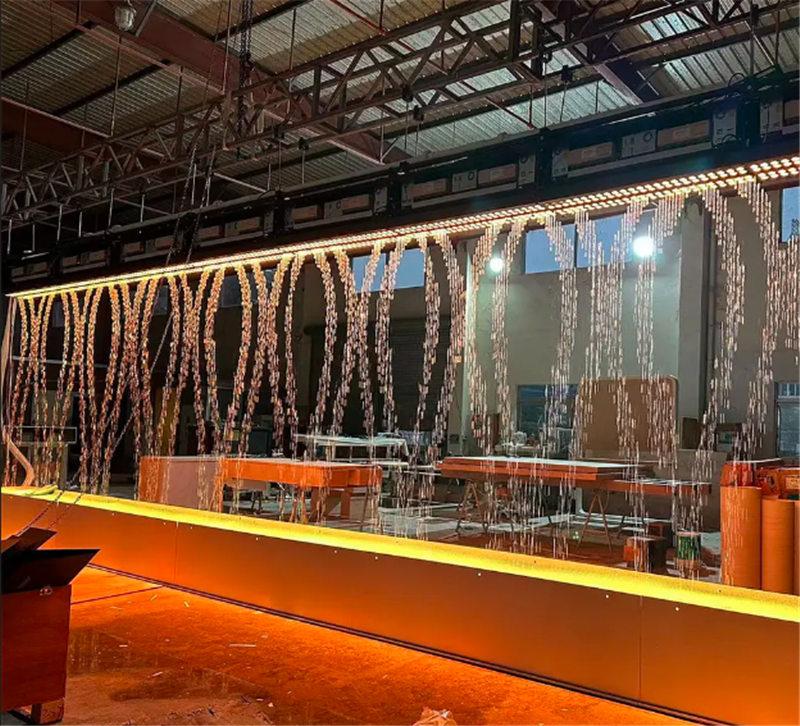

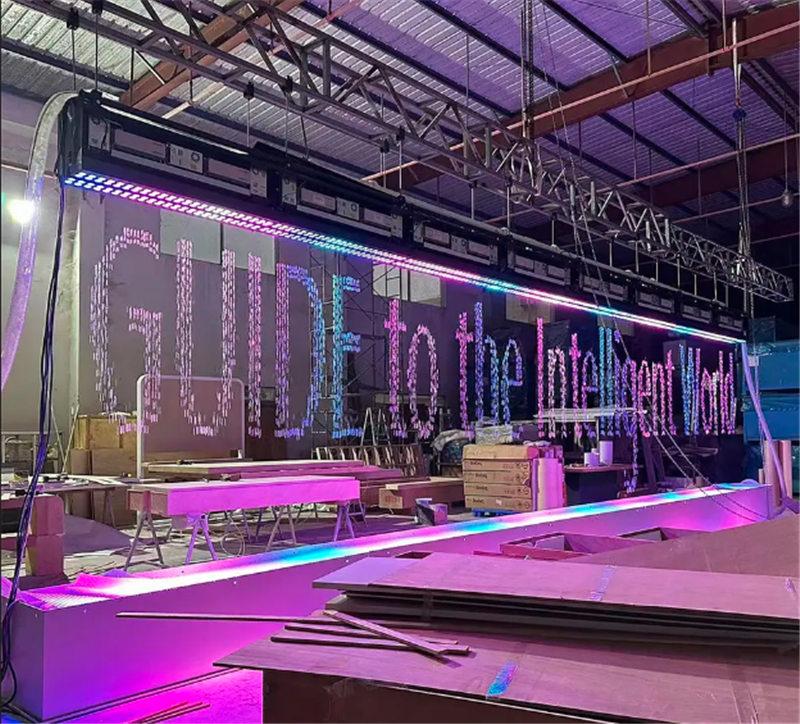

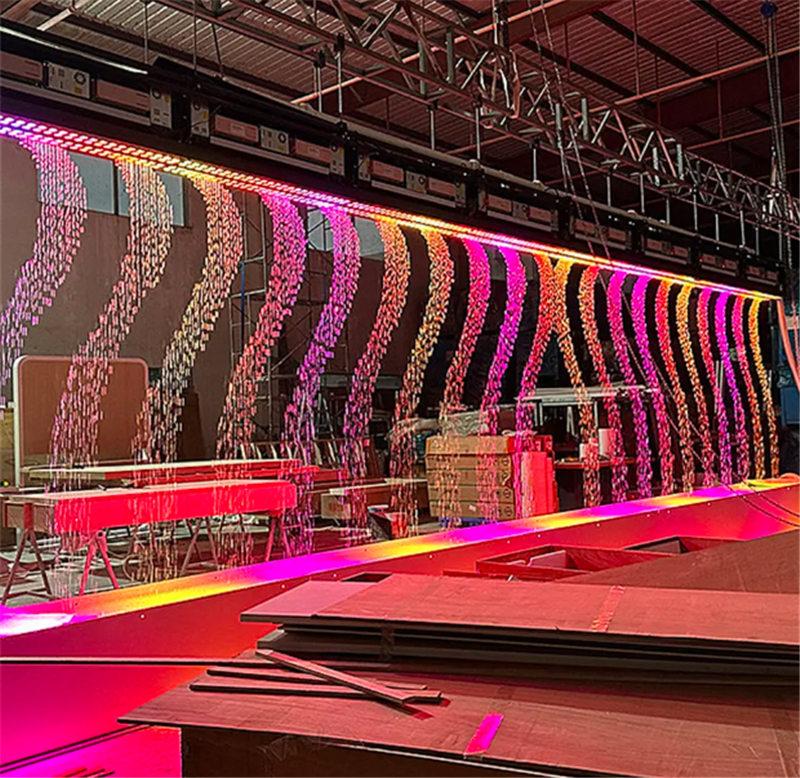

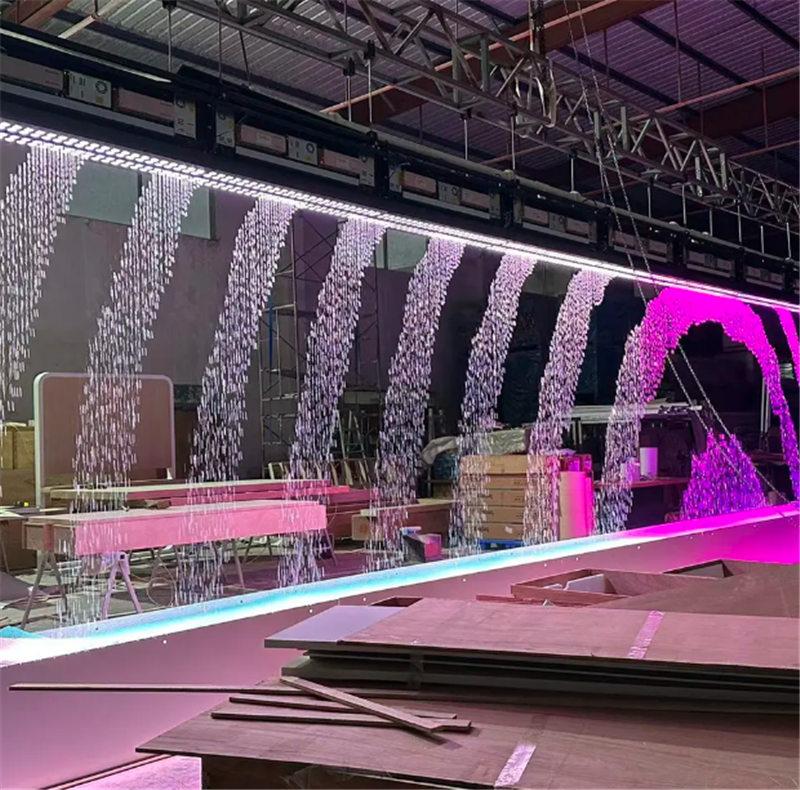

Product Effect:
